Features
A hybrid picker that precisely corrects rotation angles through servo control and performs up-down motion using pneumatics.
Uses oil-free precision guides to prevent package damage caused by oil contamination.
An economical solution that can be reasonably adopted in processes that do not require high precision in the Z-axis direction.
Auto Switch can be selected as an option.
Product Inquiry
Key Features
Newly Enhanced Hybrid Picker
This is the newly enhanced hybrid picker AERO series, which integrates PSMP’s motion technology with the existing hybrid picker.
While economy and precision have been upgraded, the size and weight have been made more compact.

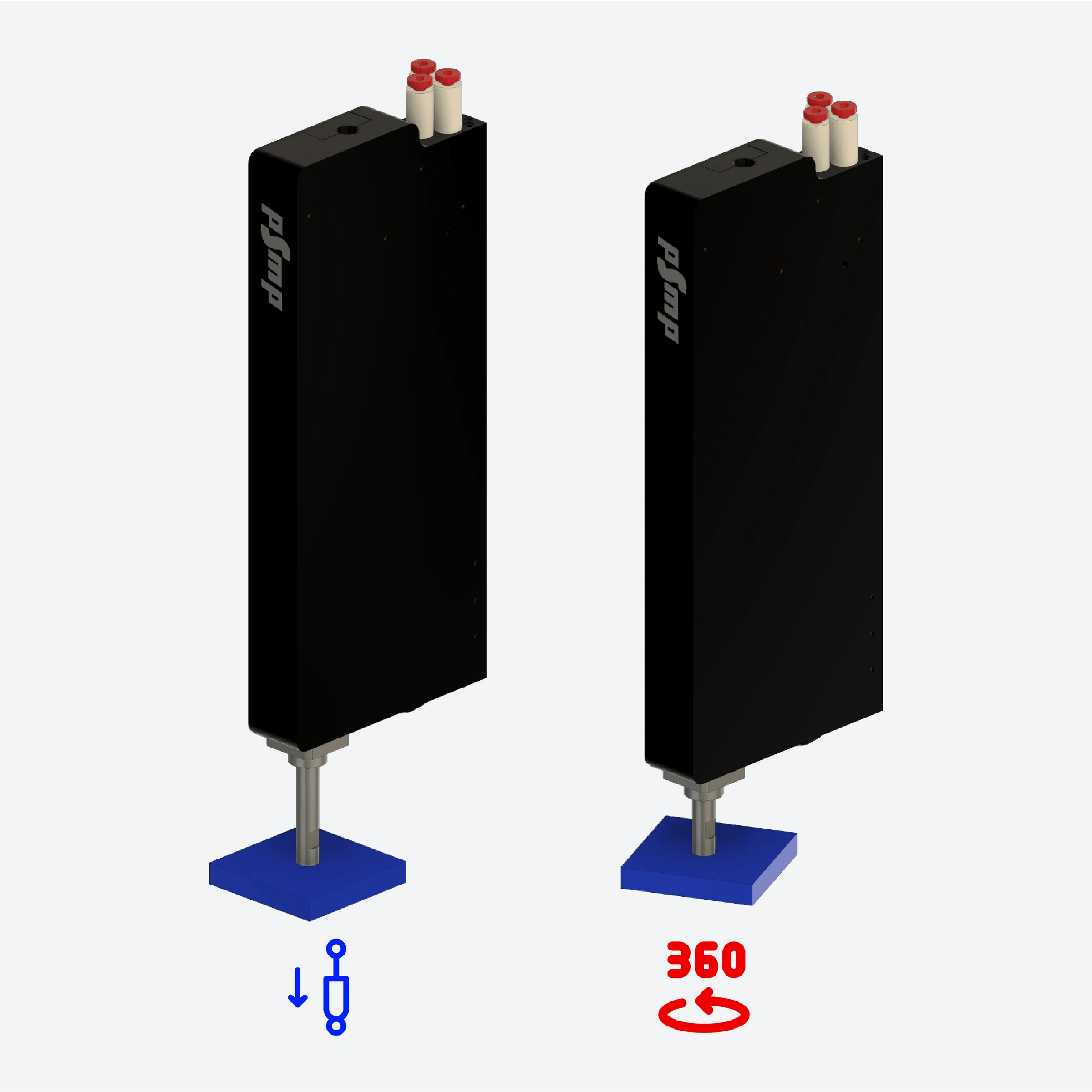

Picker Cylinder with Rotational Servo Control
Z-axis motion is driven by a cylinder, while R-axis motion is controlled by an integrated rotational servo motor, enabling position control, speed control, and acceleration control.
With repeatability of less than 0.01°, workpieces can be placed at desired positions with extreme precision.

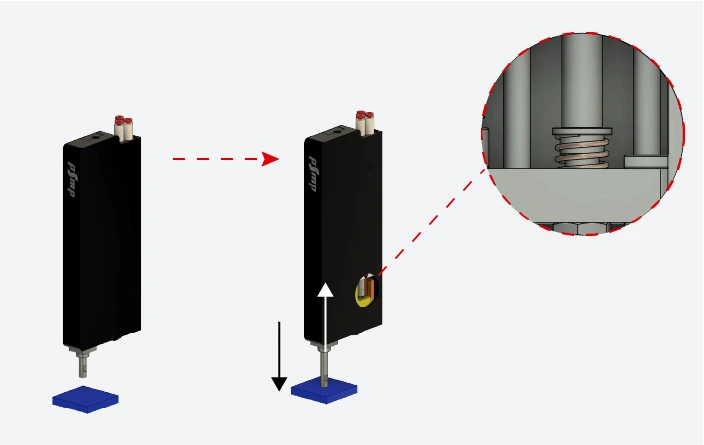

Built-in Spring Cushion
A spring cushion is built into the mechanism to minimize impact on products during pick-up operations, and the pressing pressure can be adjusted.
(Buffer specifications: Forward 1.6~4 / Backward 1~2.5 (kgf))
Cost Effectiveness
Economical compared to Z,R motion pickers equipped with linear motors.
An economical solution that can be reasonably adopted in processes that do not require high precision in the Z-axis direction.
Oil-Free Precision Guide
An oil-free picker cylinder that employs special material guides to ensure safety from oil leakage.

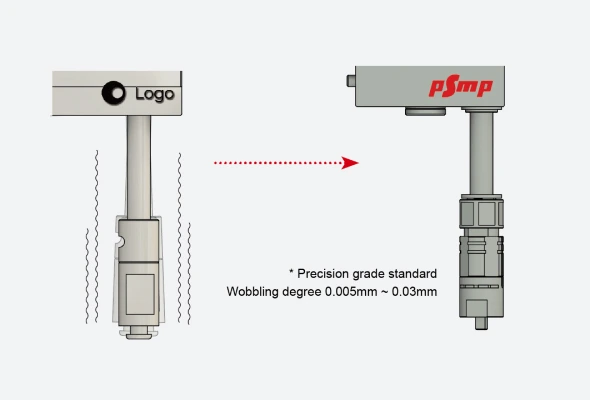

Excellent Precision
High-precision mechanical structure and tolerance management improve straightness and minimize vibration and shaking at the shaft tip.
Various Nozzle Types
Simple one-action replacement allows compatibility with various pads, greatly enhancing work efficiency and flexibility.

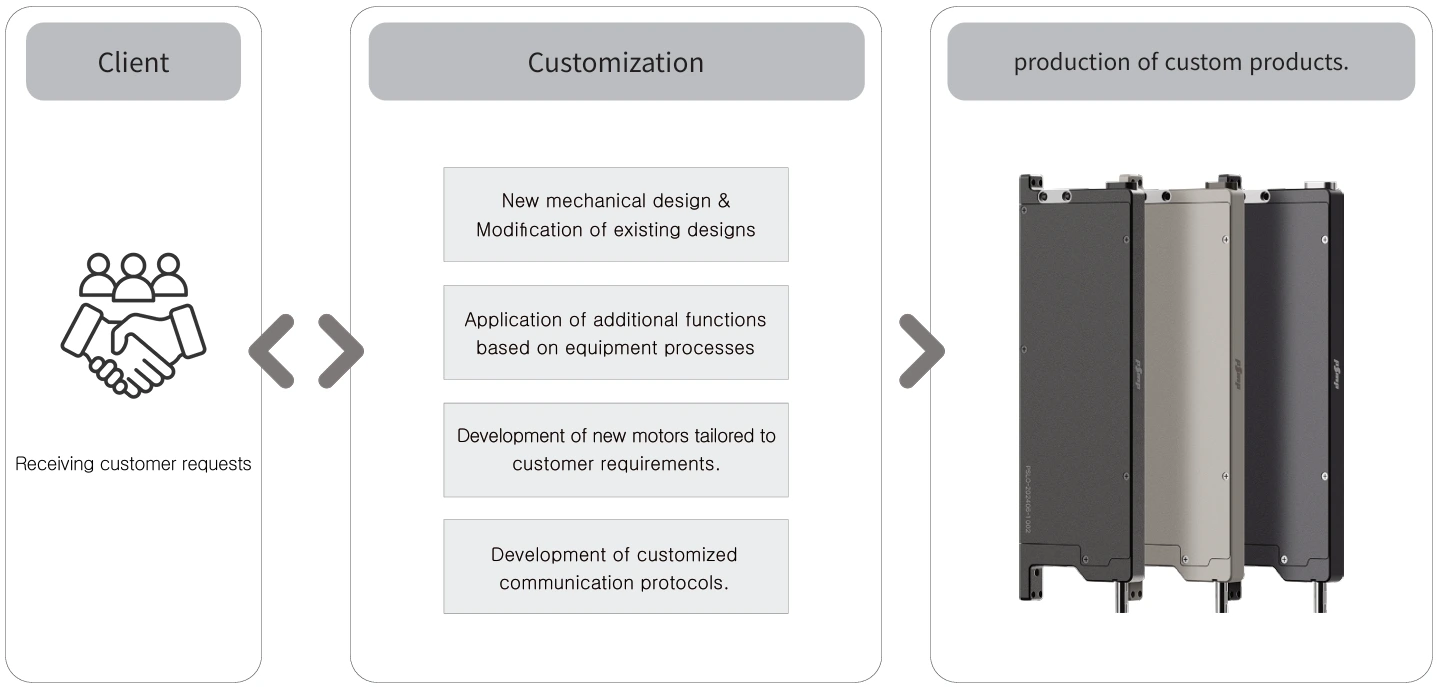

Customization
Stroke and external specifications can be customized according to customer requirements.

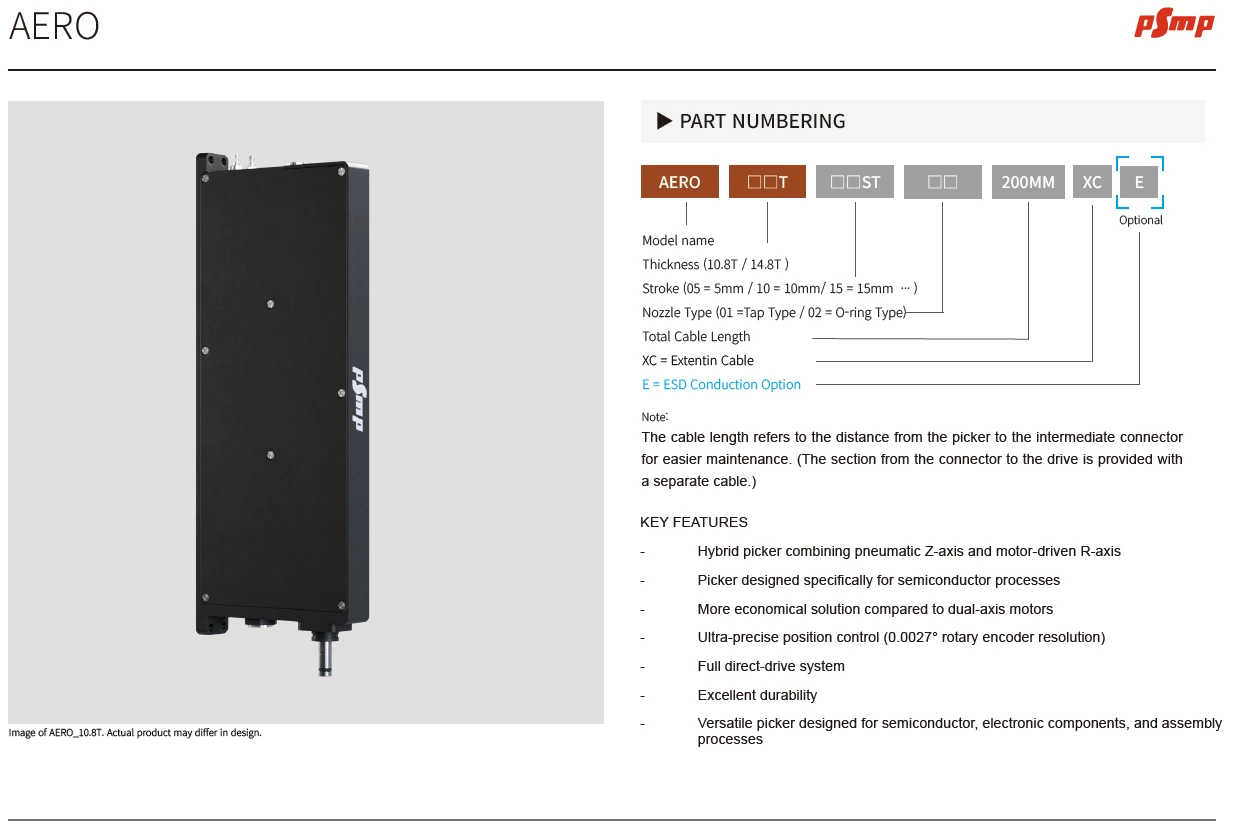

Order Number
Technical Data
AERO-10.8T Specifications
| Product | ||
|---|---|---|
| Part Numbering | AERO-10.8T | |
| Number of Axis | 1 | |
| Z-Axis Operation | Pneumatic | |
| R-Axis Operation | SPM Motor(BLDC) | |
| Thrust Transmitter | Direct Drive | |
| Linear Axis | ||
| Operating Mechanism | - | Double Acting |
| Theoretical Thrust | (kgf) | Forward: 0.57~1.4, Backward: 0.43~1.0 |
| Buffer | Length (mm) | Length:2mm, Force(g): 200 ±15%(1mm) |
| Shaft Wobble | mm | ±0.03 mm (100gf load) |
| Z-Axis Positioning Accuracy | mm | ±0.01 mm |
| Operating Pressure Range | bar | 2~5 |
| Operating Direction | - | Vertical |
| ESD (Option) | Ω | Below 10Ω |
| Sensor | ||
| Sensor ON | - | When moving UP |
| Supply Voltage | (Vdc) | 24 (Isolated) |
| Output | - | NPN Dry Contact (Max 100mA / Isolated) |
| Rotary Axis | ||
|---|---|---|
| Supply Voltage | Vdc | 24 |
| Power | W | Rated:2.51 Peak:7.62 |
| Torque | mNm | Rated:12 Peak:36.4 |
| Current | Arms | Rated:0.91 Peak:2.7 |
| Torque Constant | mNm/Arms | 13.1 |
| Max Speed | rpm | 2000 |
| Encoder Sensor Voltage | Vdc | 5 |
| Encoder&Signal Type | - | Optical / Absolute |
| Encoder Resolution | bit | 17(About 0.0027°) |
| Axis runout | mm | ±0.03 |
| Number of pole pairs | - | 2 |
| Position Repeatability(R-Axis) | - | ≤0.01° |
| Dimensions | ||
| Width | mm | 10.8 |
| Height | mm | 145.3 |
| Mount-Body | mm | 56 |
| Mount-Shaft | mm | 44±0.1 |
| Total Weight | g | 185 |
| ETC | ||
| Number of Cables | ea | 2 |
| Cable Type | – | Moving Cable for Robot |
| Shield Type | – | Spiral Wire Shield |
| Vacuum Pressure | Kpa | -85±5 |
| Vacuum Release | msec | Below 100 |

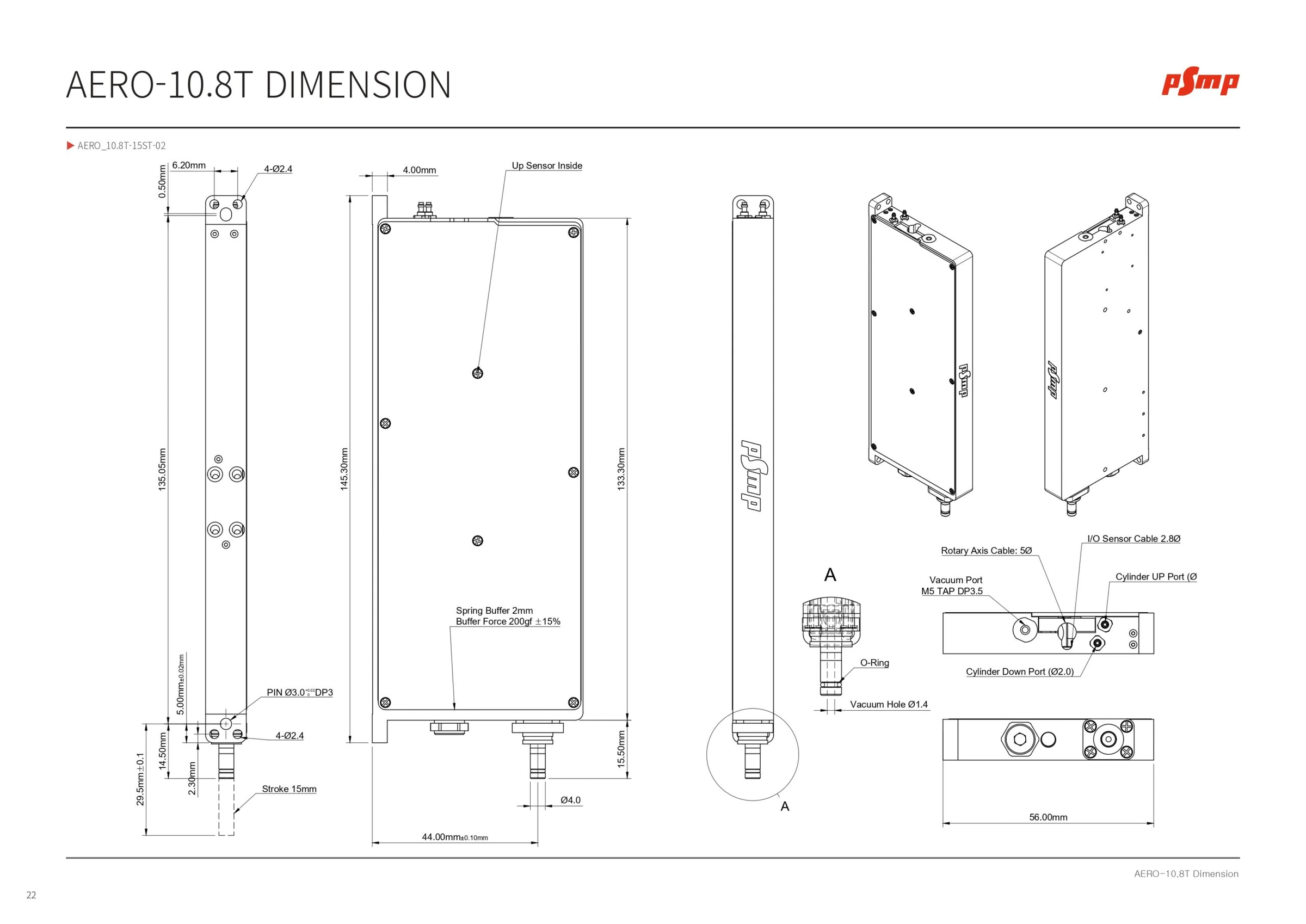

Dimensions
