PSMP is a company with world-class Pick & Place module technology.

01 / CORE VALUE

A new paradigm in high-precision automation industry, achieved through customer-tailored solutions.

Extensive expertise accumulated for product protection

At PSMP, we not only have the capability to develop and produce optimal products tailored to the diverse needs of our customers, but we also consistently supply high-quality products in the Pick & Place Module and specialized-purpose cylinder fields, backed by world-class technology.

Over 100 types of pickers developed
100+
Over 20 years of mechanical engineering expertise
20
CAGR(2018~2022)
14.3%

Source differences: experience is shown as 25 yr / over 20 years in Korean and 20 years in other languages. Picker patents are listed as 16 in Korean and 12 in other languages. Updated approved figures are pending.

02 / MECHANICAL DESIGN

Mechanical design

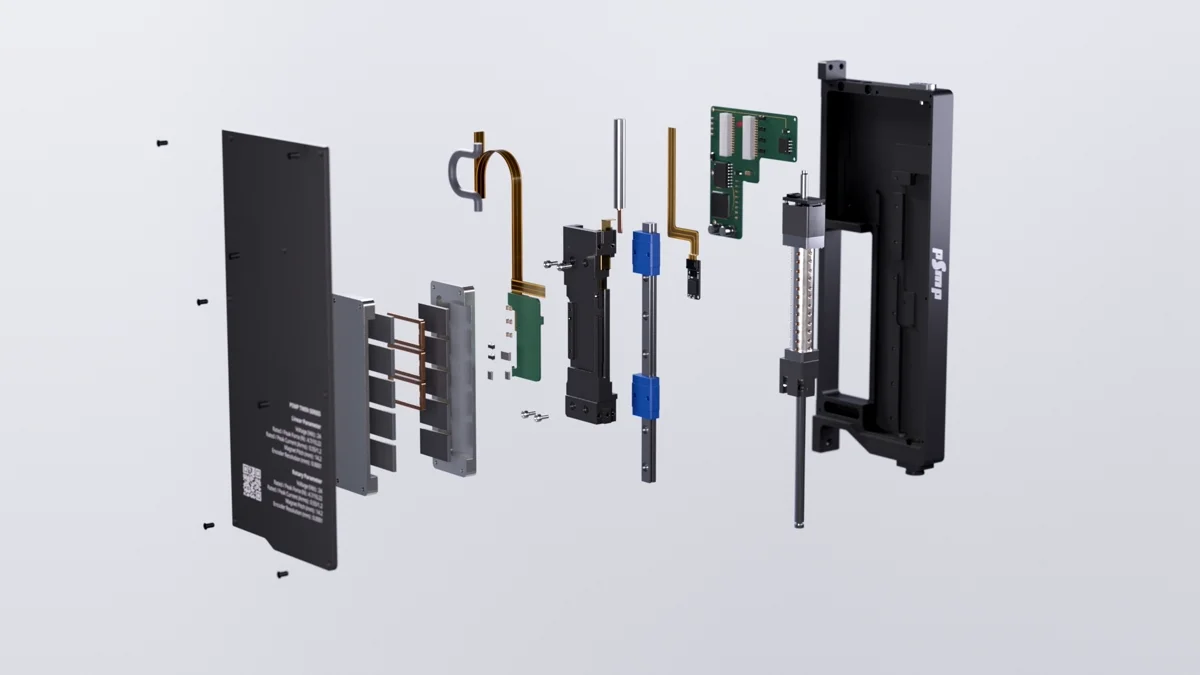

PSMP product video · exploded module view
PSMP product video · exploded module view

Precision motion within a compact envelope

Motion module design starts with the installation envelope, travel and workpiece load. The arrangement of the drive, guides and shaft is considered alongside part tolerances and assembly access to translate the intended motion into the machine.

Engineering considerations

  • Structure & layout · envelope, clearances and travel
  • Stiffness & load · force paths, deflection and moving mass
  • Tolerances & assembly · datums, alignment and service access
03 / ELECTROMAGNETIC DESIGN

Electromagnetic design

Electromagnetic Field Design and Simulation for Equipment Motors

We possess expertise in the electromagnetic field design of various motors, including IPM, SPM, and AFPM. Using advanced electromagnetic field analysis tools such as Maxwell and JMAG, we precisely perform magnetic circuit design and optimization, static/transient analysis, structural design considering rotor strength and mechanical stability, insulation design for electrical components, and thermal analysis comprehensively. We provide motor manufacturing and performance evaluation solutions with the highest levels of performance and reliability.

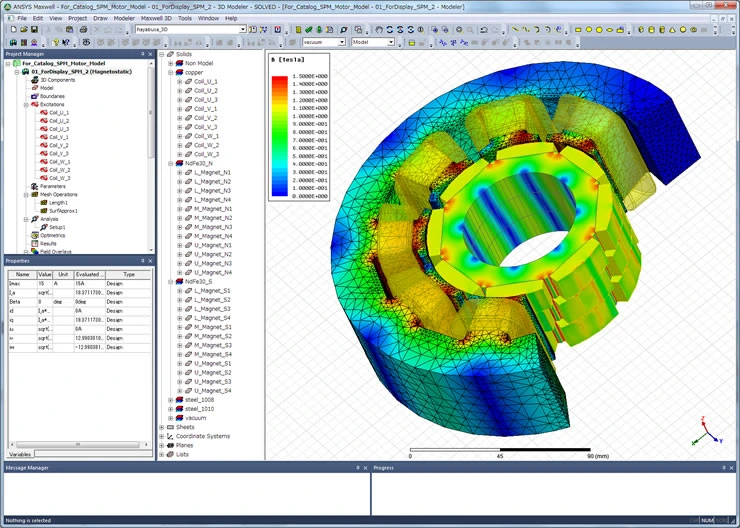

Electromagnetic Field Design and Simulation for Equipment MotorsView full image ↗
04 / CIRCUIT DESIGN

Circuit design

Circuit technology reference image · not a PSMP circuit.
Circuit technology reference image · not a PSMP circuit.Alexandre Debiève / Unsplash ↗

Connecting motor force with sensor feedback

Precision motion relies on stable power and accurate feedback as well as the motor. Power and drive paths, encoder signals and external controller interfaces are considered together to connect mechanical and electromagnetic design with the control system.

Engineering considerations

  • Power & drive · current paths, heat and protection conditions
  • Sensing & feedback · encoder signals, noise and grounding
  • System integration · connectors, pin assignments and controller interfaces
05 / ULTRA-PRECISION ASSEMBLY

Ultra-precision assembly

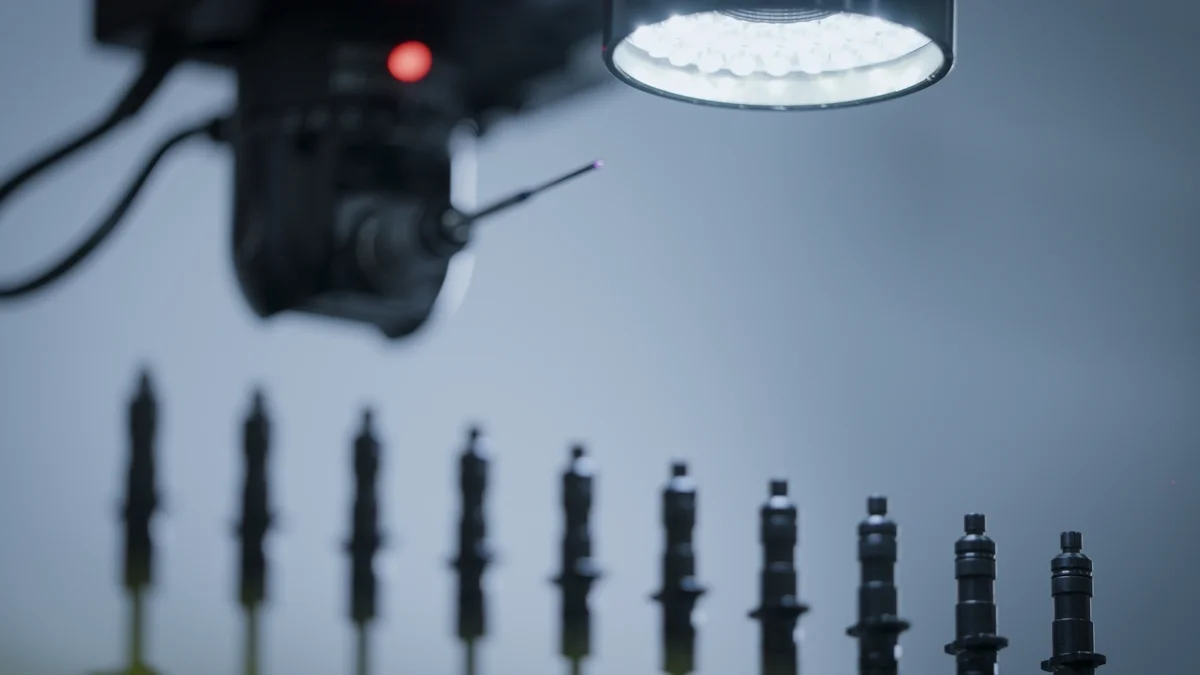

PSMP product video · precision inspection
PSMP product video · precision inspection

From design intent to measured motion

Alignment and motion after assembly matter as much as individual part precision. Reviewing datums, joints, shaft and guide alignment, and sensor position links assembly to measurement and correction. The following published PSMP repeatability study illustrates the role of motion validation.

Engineering considerations

  • Preparation · part condition and reference surfaces
  • Alignment & joining · axis alignment, interference and fastening
  • Validation · repeated motion, measurement, correction and records
  1. 01Check parts
  2. 02Align & assemble
  3. 03Measure motion
  4. 04Correct & record

Variable Pitch Head Precision Analysis

Variable Pitch Head - Wedge Type: Ultra-Precision Solution

Watch precision analysis ↗

Delivers consistent results even during long-term reliability testing.

PSMP's precision variable pitch heads are designed to maintain consistent precision even in demanding production environments. Through continuous operation of up to 100,000 cycles, we have extracted data with extremely precise deviations. We promise not just long-lasting products, but solutions that consistently deliver precise results.

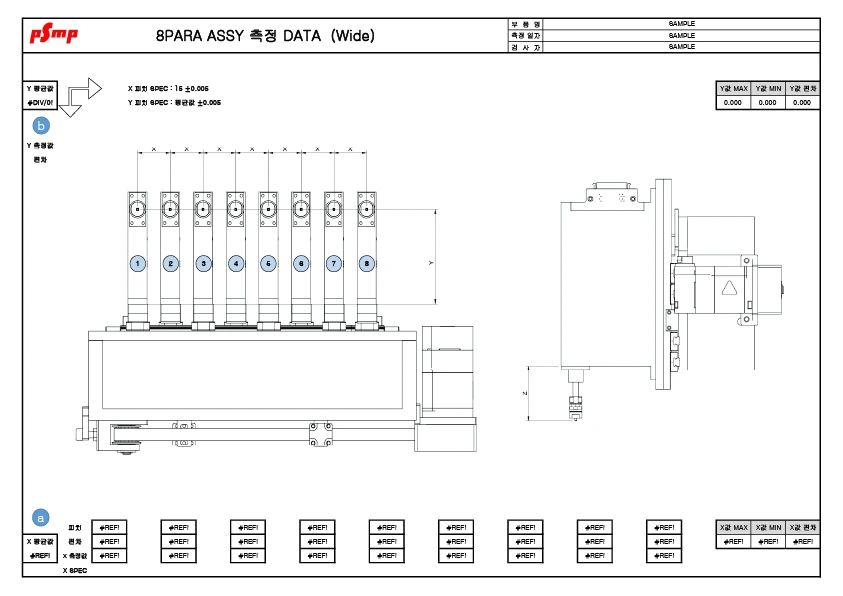

Variable Pitch Head Precision AnalysisView full image ↗
06 / QUALITY CONTROL

Shipment Deviation Inspection

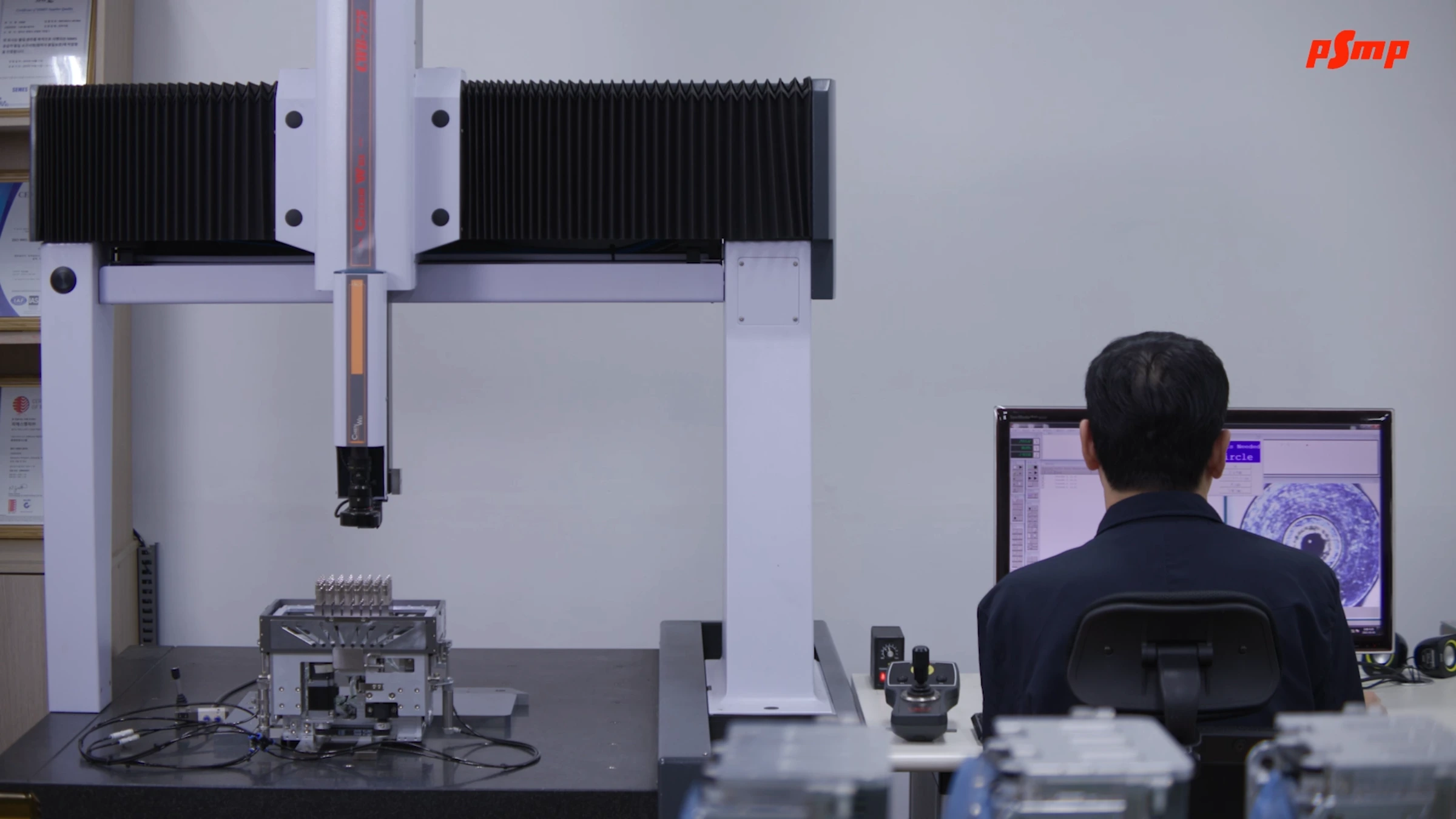

Precision calibration through Vision inspection during product shipment.

Precision calibration through Vision inspection during product shipment.

After undergoing rigorous inspection and calibration, the products are shipped as approved, along with specification sheets and certificates of compliance. All shipped products are thoroughly managed through lot numbers.

We have implemented in-house quality assurance management and mandatory inspection before shipment, ensuring prompt delivery and a proactive mindset that strives for excellence, even for a single product.

Shipment Deviation InspectionView full image ↗
07 / INDUSTRY 4.0

Data-driven operations

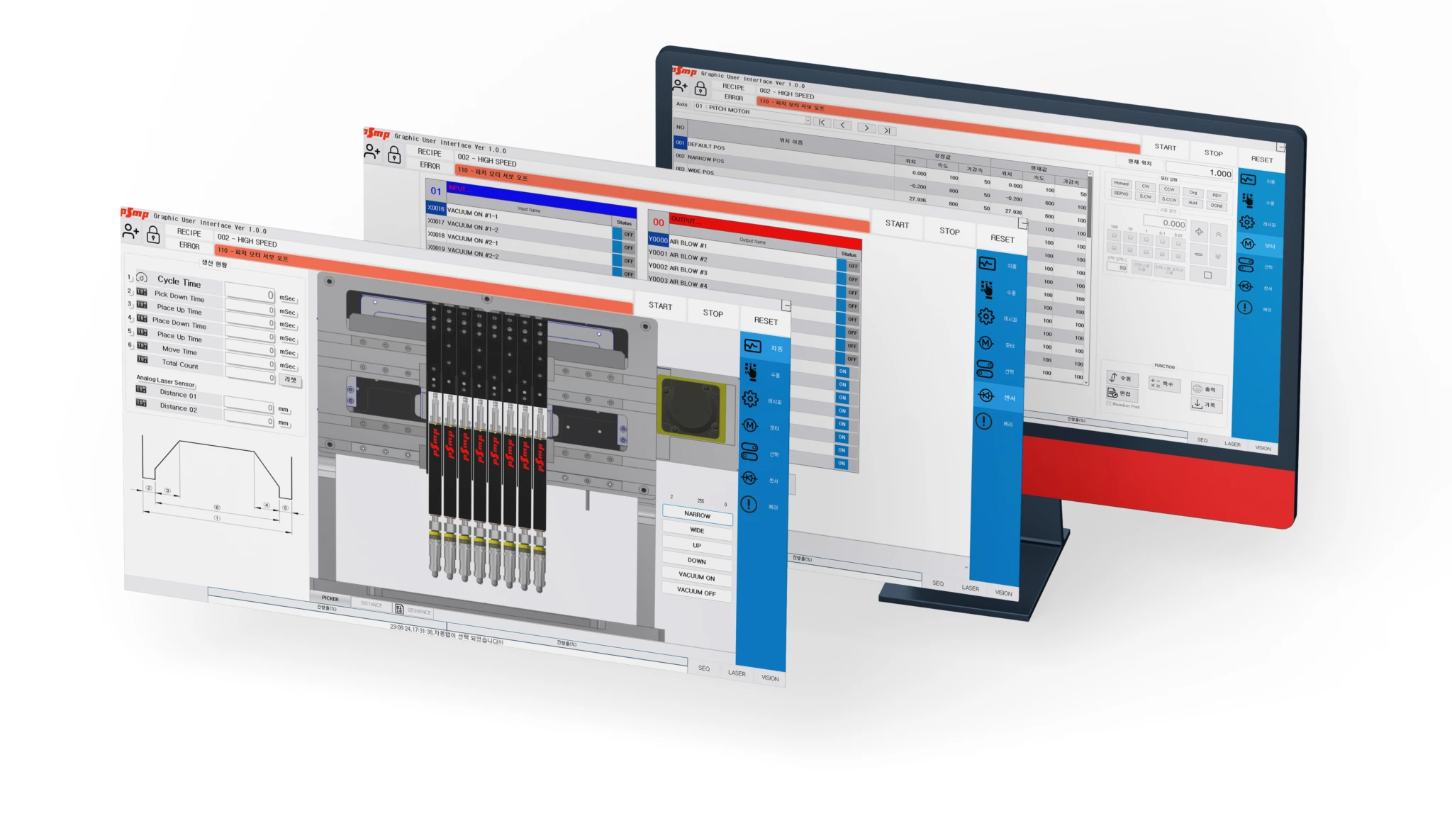

PSMP Industry 4.0

Real-time data collection

Continuous real-time data collection and logging enable timely decision-making and streamlined management processes.

Demonstration support for feasibility validation

To support feasibility assessment, we offer a demo system equipped with automation configurations customized for the customer's production environment.

Anomaly detection and automated alerting

The system detects early indications of equipment malfunctions and issues real-time alerts to prevent cost-intensive operational disruptions.

Operation logs and lifespan parameters

Raw module data is stored locally and can be automatically transmitted to the central data center.

08 / RESEARCH & MILESTONES

Research & milestones

Holder of numerous patents related to Pick & Place technology

  • Picker-related patents: 12 types
  • Variable head-related patents: 2 types
  • Nozzle-related patents: 3 type

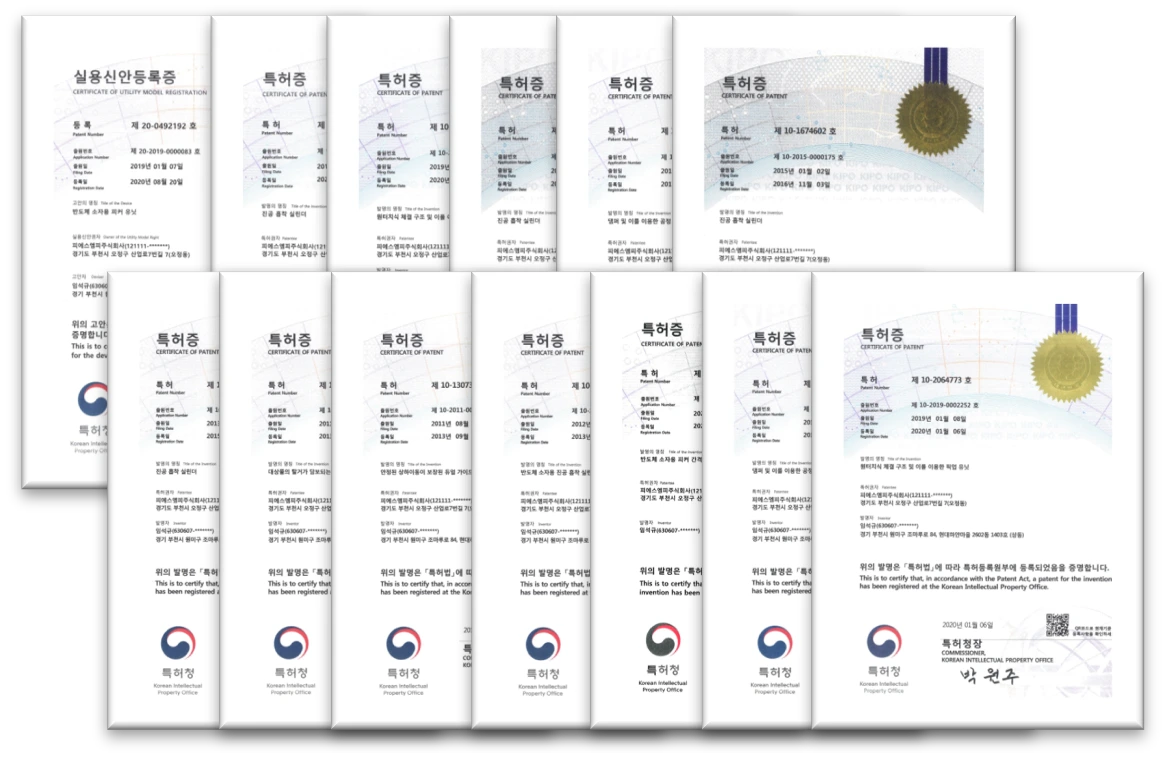

Holder of numerous patents related to Pick & Place technologyView full image ↗

Milestones

  1. Selected as a Youth-Friendly Small and Medium Enterprise (SME)

  2. ISO 45001 Occupational Health and Safety Management System Certification

  3. Selected as a Main-Biz (Management Innovation) Small and Medium Enterprise

  4. Certified Specialized Company in Materials and Components

  5. Establishment of P.S.M.P Cheonan Branch

  6. INNO-BIZ certification as a technology-innovative SME

  7. Designation as a company eligible for alternative military service

  8. ISO 14001 and ISO 9001 certifications; certification as a specialized root-technology company

  9. Incorporation of PSMP; venture company certification; establishment of an in-house research institute

  10. Establishment of PSMP

Based on previously published materials. Certification milestones do not establish current validity.
